Features
• 3/8 in (9.52 mm) end-porting
• Fully-groundable acetal model
• Delivery up to 7 gpm (26.5 lpm)
• Operates on as little as 12 psi (0.8 bar, 0.08 MPa) air pressure
• Quiet operation
Typical Fluids Handled
• Paints
• Lubricants
• Inks
• Stains
• Solvents
• Coatings
• Dyes
Typical Applications
• Drum transfer for fluids up to 1000 centipoise
• Circulation of low viscosity inks, stains and dyes
• Coolant circulation and evacuation
• Waste fluid removal
• On-demand batch chemical metering
• Low viscosity adhesive supply
• Consistent low pressure air spray or HVLP supply

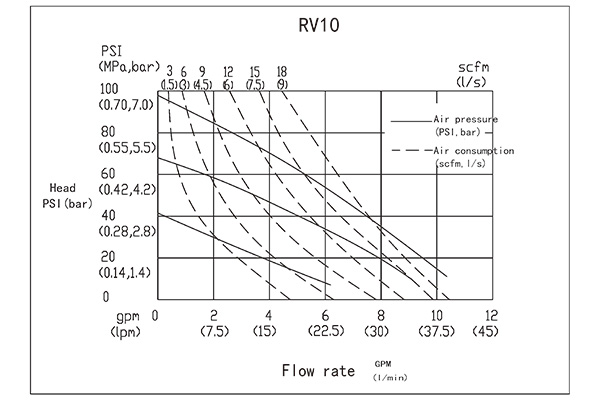

Technical Curve

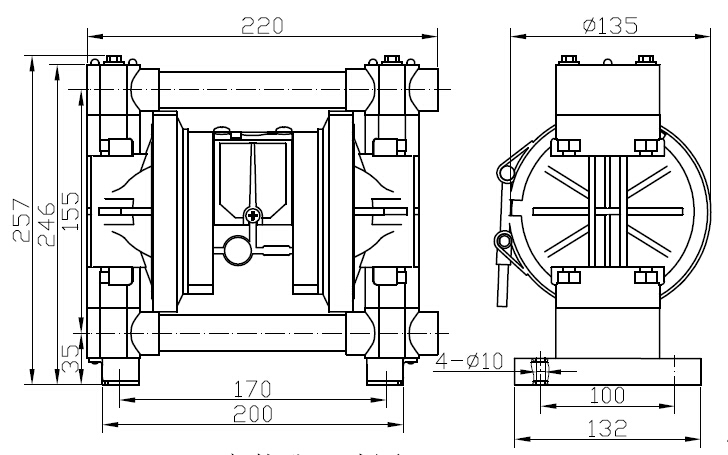

Dimensional
